Silverware Wiki

• Floureon H101
• Bayangtoys X9 Propellers

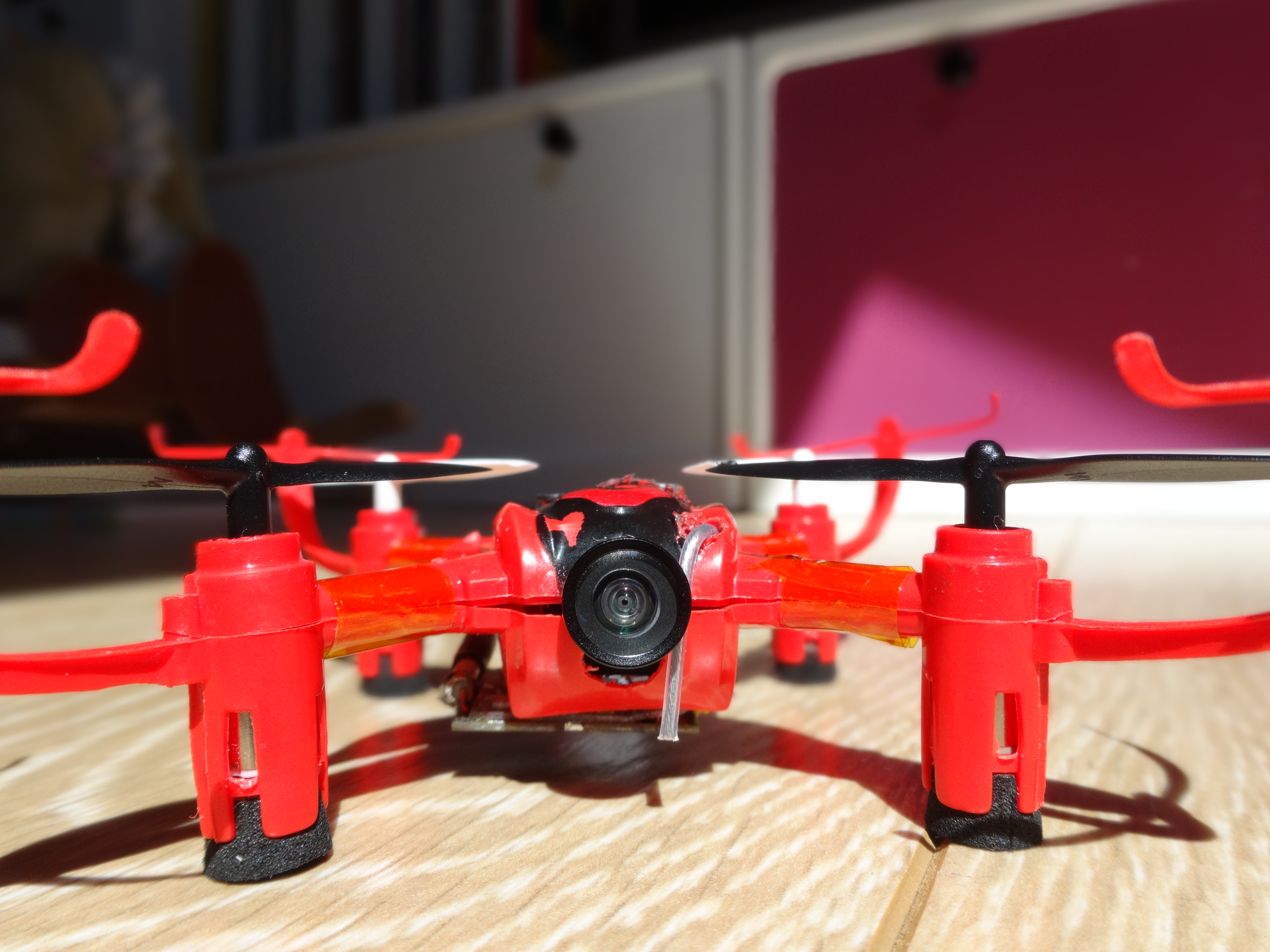

• 600TVL 1/4 1.8mm CMOS FPV 170 Degree Wide Angle Lens Camera PAL/NTSC 3.7-5V
• PFM Control DC-DC 0.9V-5V To USB 5V Boost Step-up Power Supply Module USB port desoldered, overhanging Rest of the board cutreplaced by This smaller step-up (saves 1 gramm)

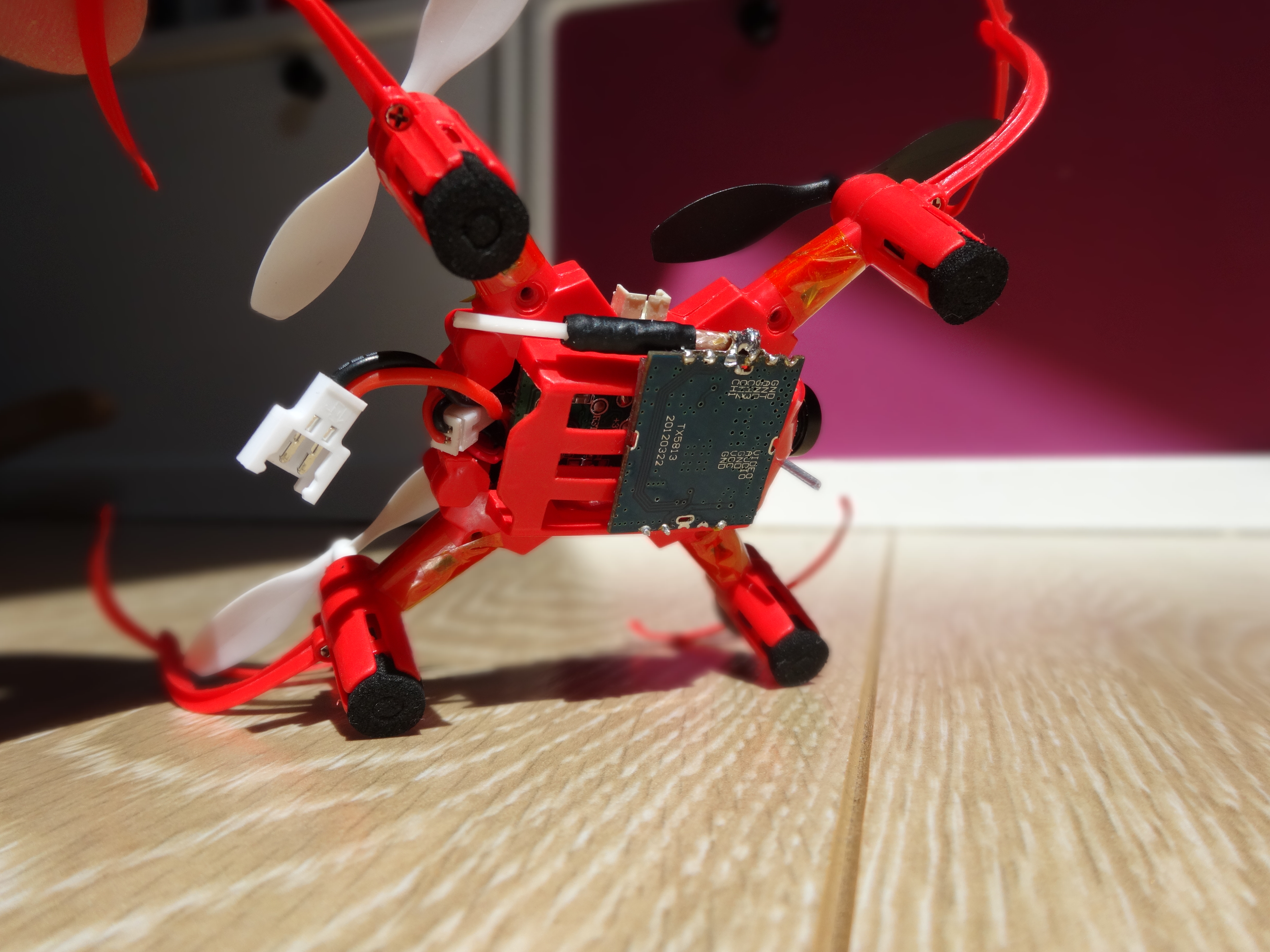

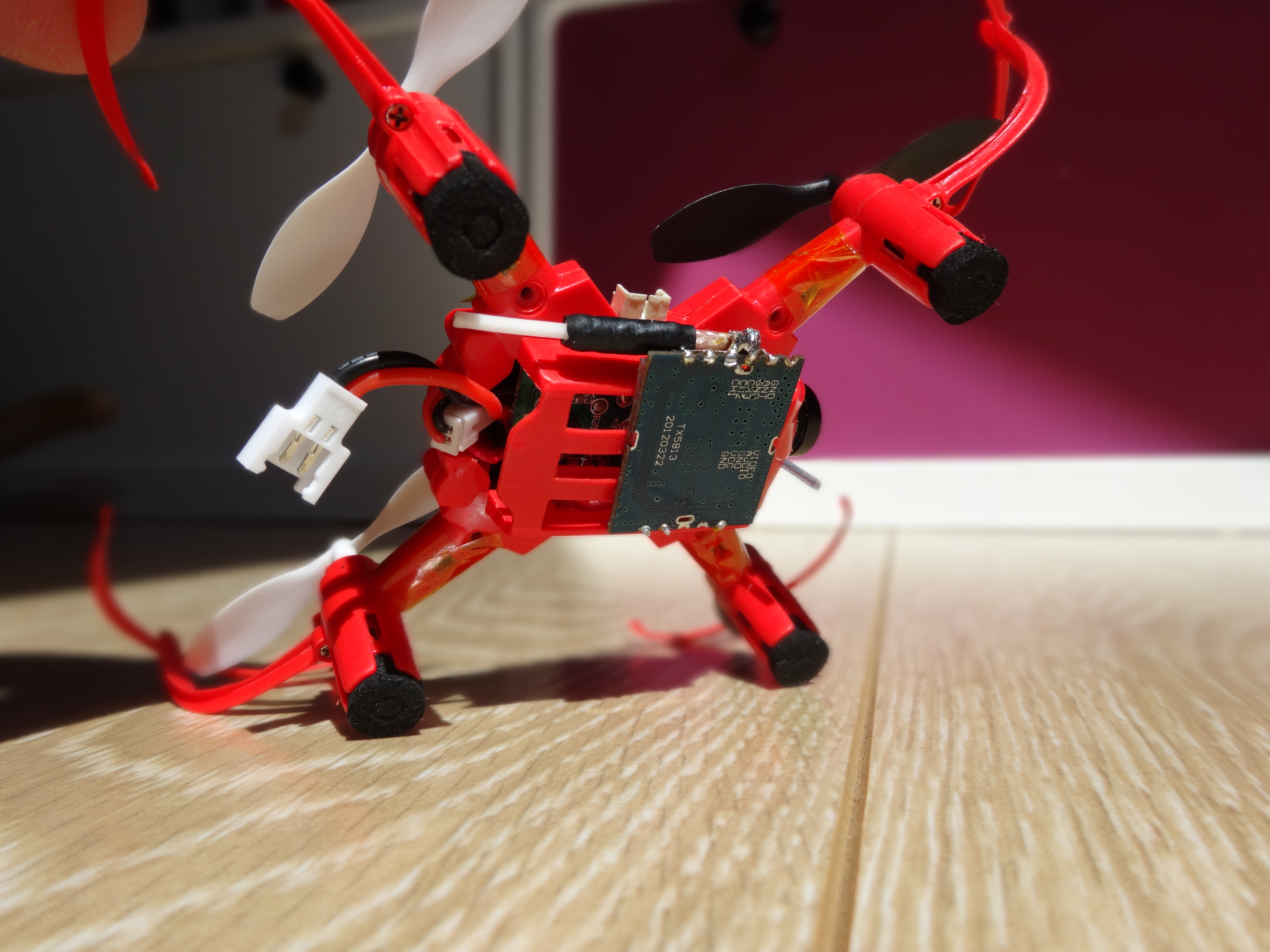

• Boscam FPV 5.8G 10mW Wireless Audio Video Transmitter Module TX5813
• 3 Pin header (don't know exactlx which one, from fund) for flashing

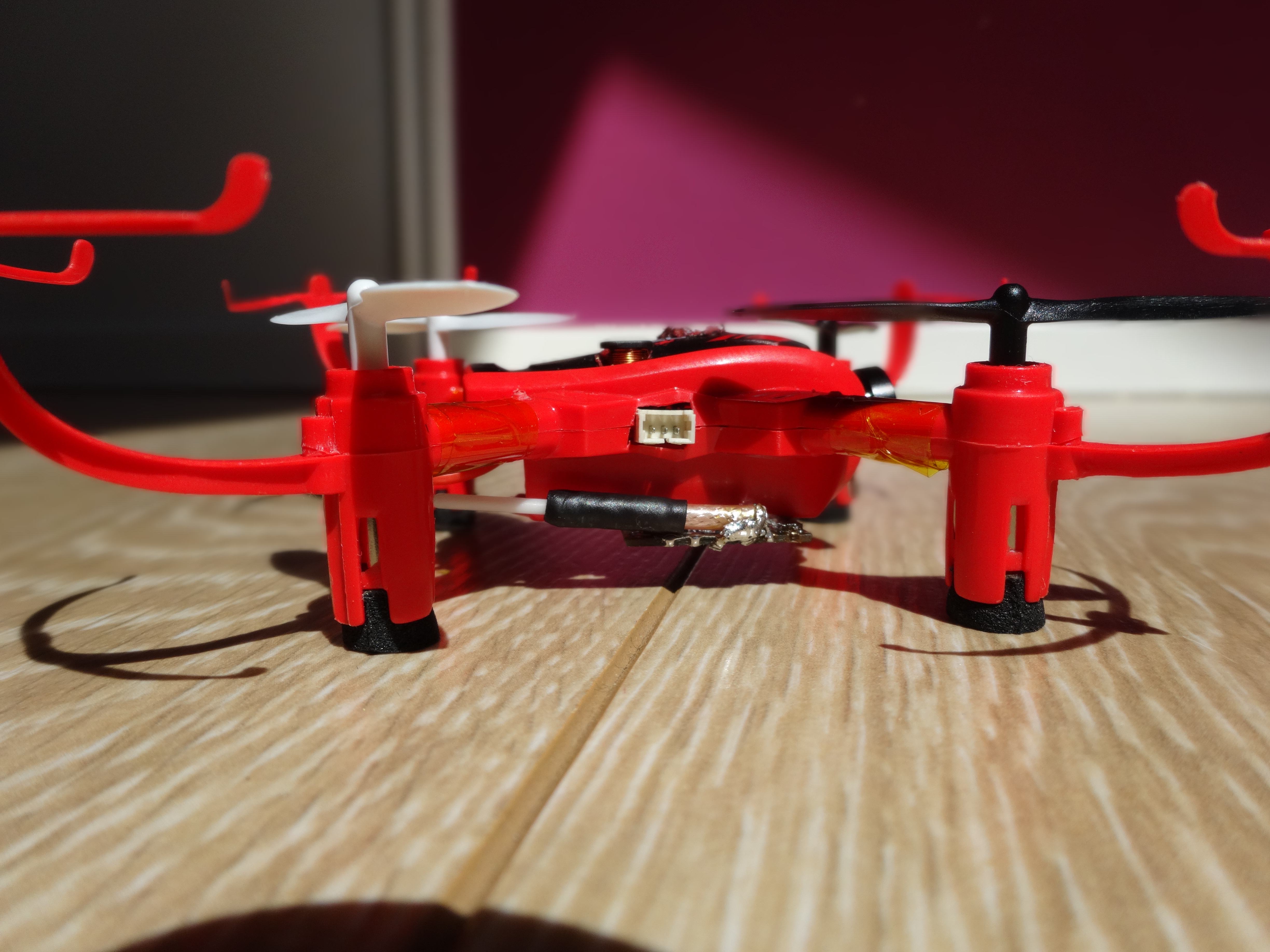

• DIY Dipole Antenna (german page, but pictures say everything)
• SATA133 wires instead of normal 28AWG - saves 1.5 more gramms

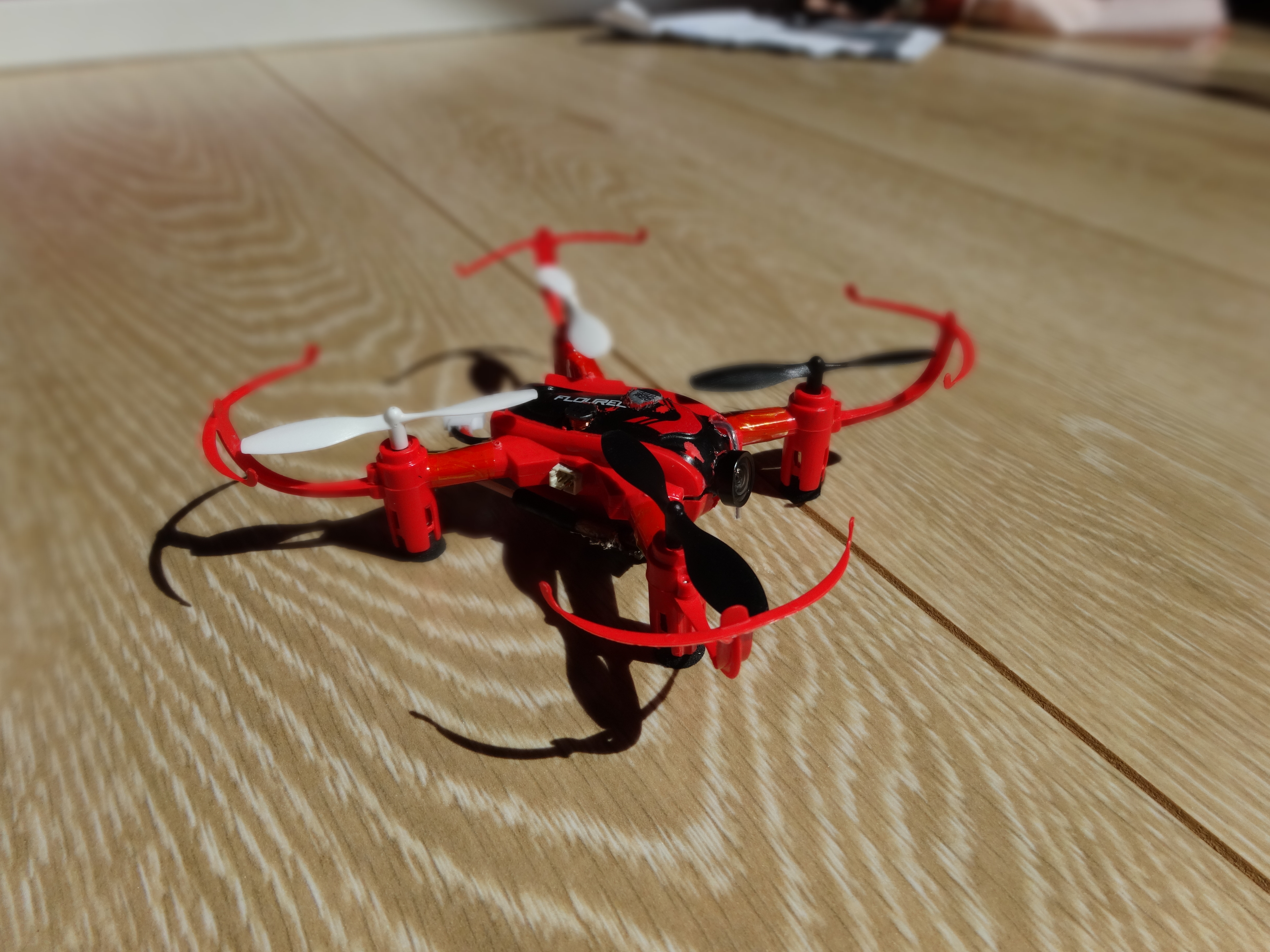

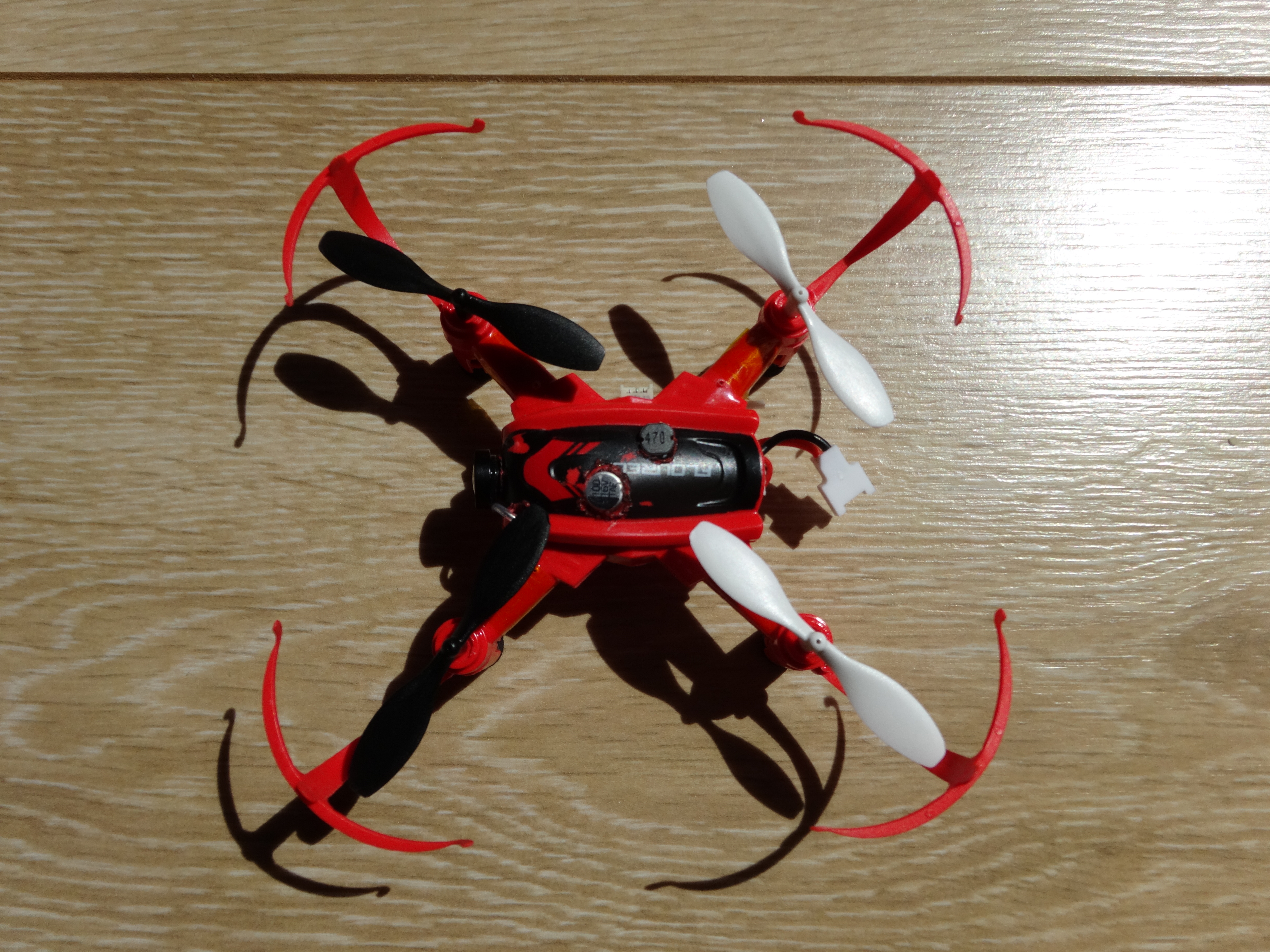

• H101 (in my case with H8mini FC, but doesn't matter) with Silverware
• Floureon stock 150mAh 260mAh batteries
• weight 22g 19g (without battery)
• flight time with FPV 3:15 4:15 min (without FPV about 30 seconds longer)

(while pausing cleaning out the flat )

now flight behavior is very fine!, feels no more heavy
